Tire Psi
Press and release the UP or DOWN button until “Tire
PSI” displays highlighted in the EVIC and press the
SELECT button. Press and release the UP/DOWN buttons
until one of the following System Status messages
displays in the EVIC:
• System OK
• System Warnings Displayed (will display all currently
active System Warnings)
• Tire Pressure Monitor System (shows the current pressure
of all four road tires). For additional information,
refer to “Tire Pressure Monitor System” in “Starting
And Operating”.

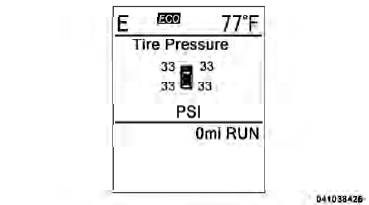

Tire Pressure Display
NOTE:
• Tires heat up during normal driving conditions. Heat
will cause the tire pressure to increase from 2 to 6 psi
(14 to 41 kPa) during normal driving conditions. Refer
to “Tires-General Information/Tire Inflation Pressures”
in “Starting And Operating” for additional
information.
• Your system can be set to display pressure units in PSI, kPa, or BAR.
