Center High-Mounted Stop Lamp (CHMSL)

The center high-mounted stop lamp is an LED assembly.

See your authorized dealer for replacement.

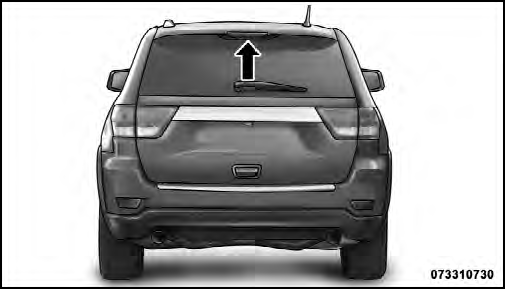

Center High-Mounted Stop Lamp
Center High-Mounted Stop Lamp
