Fold And Tumble Rear Seat — Two-Door Models

Jeep Wrangler / Jeep Wrangler Owner's Manual / Understanding The Features Of Your Vehicle / Seats / Fold And Tumble Rear Seat — Two-Door Models

NOTE:
• Prior to folding the rear seat, it may be necessary to reposition the front seats.

• Be sure that the front seats are fully upright and positioned forward. This will allow the rear seat to fold down easily.

1. Lift the seatback release lever and fold the seatback forward.

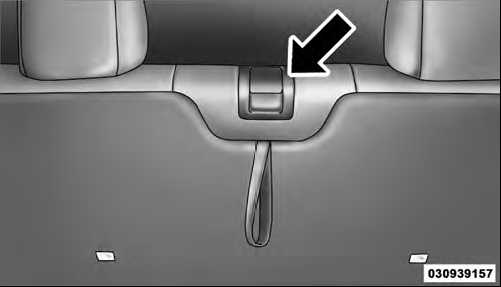

Rear Seat Release

2. Slowly flip the entire seat forward.

Folding Rear Seat

3. Return the seat to the normal position.

4. Raise the rear seatback using the assist strap and firmly lock the seat into position.
