Front Panel(s) Installation With Rear Hard Top Removed

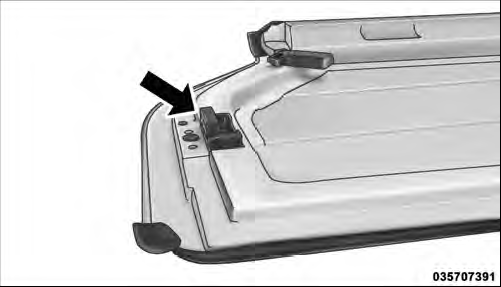

1. Turn the left and right panels over and move the spacer block (located on the rear of the panel) upward 90 degrees.

NOTE: The front panel(s) must be positioned properly to ensure sealing. Set

NOTE: The front panel(s) must be positioned properly to ensure sealing. Set the panels on the windshield frame so that there is no overhang. Also, make sure that the panels are sitting flush with the body.

2. Install the right panel first, then the left panel.

3. Reinstall the panel(s) using the same steps for removal in reverse order.
