Quick Steps For Raising The Soft Top

1. Open the swing gate and raise the top, engaging the Sunrider latches (another person may be needed to help with this operation).

2. Install rear corner panels.

2. Install rear corner panels.

3. Rotate the header forward.

3. Rotate the header forward.

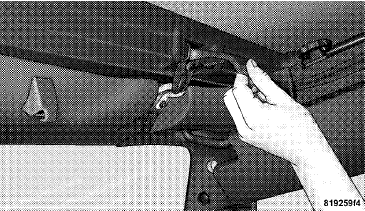

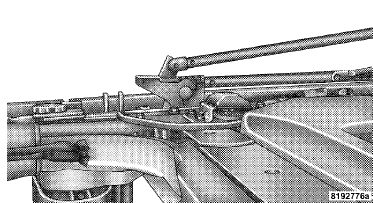

4. Engage the header latches.

4. Engage the header latches.

5. Install the side and back windows.

5. Install the side and back windows.

Folding Down The Soft Top
