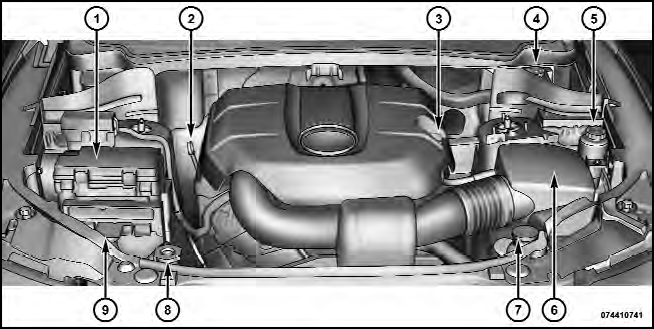

Engine Compartment — 3.6L

1 — Totally Integrated Power Module (Fuses)
1 — Totally Integrated Power Module (Fuses)
2 — Engine Oil Dipstick
3 — Engine Oil Fill
4 — Brake Fluid Reservoir
5 — Power Steering Fluid Reservoir
6 — Air Cleaner Filter
7 — Washer Fluid Reservoir
8 — Coolant Pressure Cap (Radiator)
9 — Engine Coolant Reservoir
