Electrical Power Outlet

Your vehicle is equipped with a fused 12 Volt (13 Amp) power outlet. This power outlet is located on the instrument panel, below the climate controls. It has power available when the ignition switch is in the ON or ACC position.

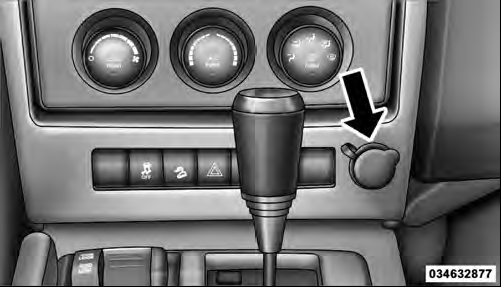

Front Power Outlet
Front Power Outlet

Insert the cigar lighter or accessory plug into the outlet for use to ensure proper operation.

NOTE: To ensure proper operation a MOPAR knob and element must be used.

CAUTION!
• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded the fuse protecting the system will need to be replaced.

• Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlets as this will damage the outlet and blow the fuse. Improper use of the power outlet can cause damage not covered by your New Vehicle Limited Warranty.

Power Outlet Fuse Location
Power Outlet Fuse Location

M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel

WARNING!
To avoid serious injury or death:

• Only devices designed for use in this type of outlet should be inserted into any 12 Volt outlet.

• Do not touch with wet hands.

• Close the lid when not in use and while driving the vehicle.

• If this outlet is mishandled, it may cause an electric shock and failure.

CAUTION!
• Many accessories that can be plugged in draw power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent the engine from starting.

• Accessories that draw higher power (i.e., coolers, vacuum cleaners, lights, etc.) will degrade the battery even more quickly. Only use these intermittently and with greater caution.

• After the use of high power draw accessories, or long periods of the vehicle not being started (with accessories still plugged in), the vehicle must be driven a sufficient length of time to allow the alternator to recharge the vehicle’s battery.

• Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug.
