Tire And Loading Information Placard Location

NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door.

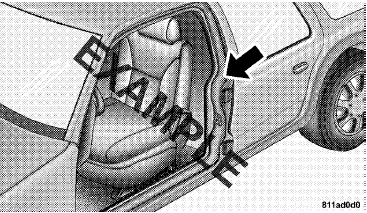

Tire Placard Location
Tire Placard Location
