Trailer Towing Weights (Maximum Trailer Weight Ratings)

Jeep Liberty / Jeep Liberty Owners Manual / Starting And Operating / Trailer Towing / Trailer Towing Weights (Maximum Trailer Weight Ratings)

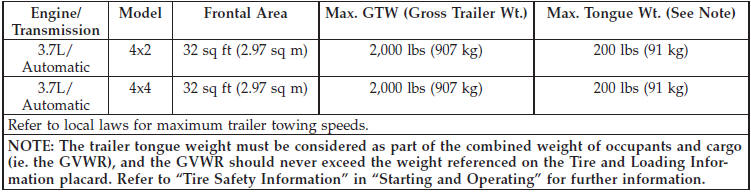

The following chart provides the maximum trailer weight ratings towable for your given drivetrain.

When Towing Trailers With Gross Trailer Weight (GTW) Between 3,500 Lbs (1

When Towing Trailers With Gross Trailer Weight (GTW) Between 3,500 Lbs (1 588 kg) And 5,000 Lbs (2 268 kg)

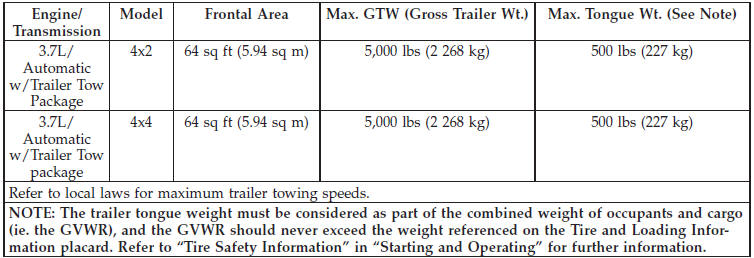

The following chart provides maximum trailer weight ratings towable for the following engine/transmission combinations, ONLY if using a weight distributing hitch.

Trailer And Tongue Weight
