To Cancel
The system will disable ACC without erasing the memory if:
• You softly tap the brake pedal.
• You depress the brake pedal.
• You press the CANCEL switch.
• An Anti-Lock Brake System (ABS) event occurs.
• A Trailer Sway Control (TSC) event occurs.
• If the transmission is shifted into NEUTRAL.
• The Electronic Stability Control/Traction Control System (ESC/TCS) activates.
NOTE: If ACC is resumed or set with the ESC/TCS off, ESC will automatically be re-engaged.

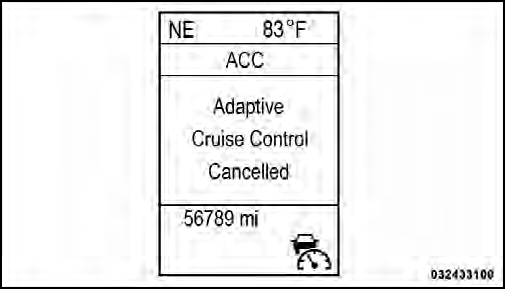

Adaptive Cruise Control Cancelled
