Parksense Display

When the vehicle is in REVERSE, the warning display will turn ON indicating the system status.

Park Assist System ON
Park Assist System ON

Park Assist System OFF
Park Assist System OFF

The system will indicate a detected obstacle by showing three solid arcs and will produce a one-half second tone.

As the vehicle moves closer to the object the EVIC display will show fewer arcs and the sound tone will change from slow, to fast, to continuous.

Slow Tone
Slow Tone

Fast Tone Fast Tone

Continuous Tone
Continuous Tone

The vehicle is close to the obstacle when the EVIC display shows one flashing arc and sounds a continuous tone.

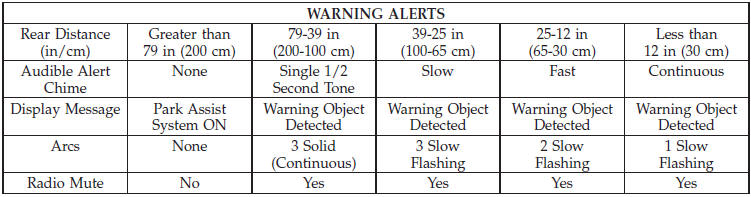

The following chart shows the warning alert operation when the system is detecting an obstacle:

NOTE: ParkSense will MUTE the radio, if on, when

NOTE: ParkSense will MUTE the radio, if on, when the system is sounding an audio tone.
