Windshield Wiper Operation
Rotate the end of the lever upward to the second detent past the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the third detent past the intermittent settings for high-speed wiper operation.

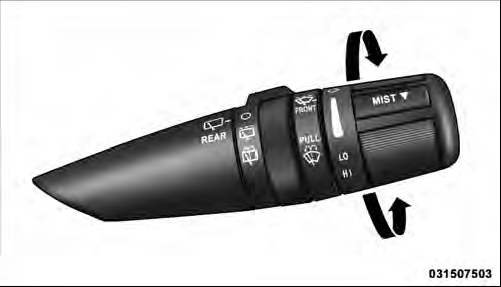

Front Wiper Control
CAUTION!
In cold weather, always turn off the wiper switch and allow the wipers to return
to the park position before turning off the engine. If the wiper switch is left
on and the wipers freeze to the windshield, damage to the wiper motor may occur
when the vehicle is restarted.
