Opening The Sunrider

1. Unclip and move the sun visors to the side.

2. Release the header latches from the loops on the windshield frame.

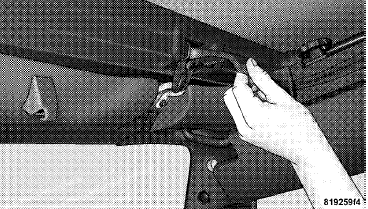

3. Slide the plastic sleeve forward.

3. Slide the plastic sleeve forward.

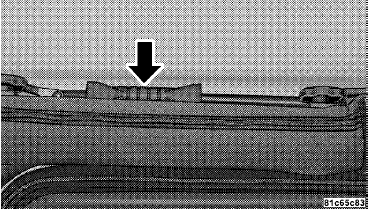

4. Grasp the header and lift the top back. Make sure the material is folded back

4. Grasp the header and lift the top back. Make sure the material is folded back as shown.

NOTE: The Sunrider latch on the door rail should not be activated for Sunrider use. If activated, the soft top must be reinstalled starting from the sail panels.

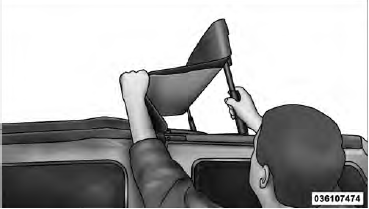

5. Locate the straps to secure the side bows. Wrap the straps around the bows

5. Locate the straps to secure the side bows. Wrap the straps around the bows as shown. Repeat on the other side.

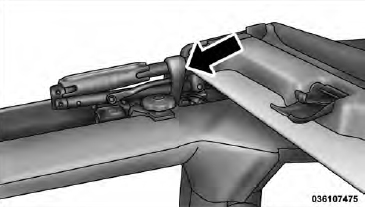

6. Reposition the sun visors.

6. Reposition the sun visors.
