Rear Tail, Stop, Turn Signal, And Backup Lamp

Jeep Wrangler / Jeep Wrangler Owner's Manual / Maintaining Your Vehicle / Bulb Replacement / Rear Tail, Stop, Turn Signal, And Backup Lamp

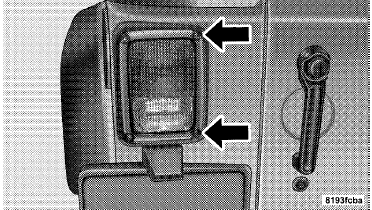

1. Remove the two inboard screws attaching the tail light housing to the body. DO NOT REMOVE THE OUTER SCREWS AT ANY TIME.

2. Separate the housing from the body by pushing the lamp inboard while pulling

2. Separate the housing from the body by pushing the lamp inboard while pulling the lamp away from the body.

3. Rotate the appropriate socket 1/4 turn counterclockwise, then remove it from the housing.

4. Pull the bulb straight from the socket to replace.
