Rear Tail, Stop, Turn Signal, And Backup Lamps

1. Raise the liftgate.

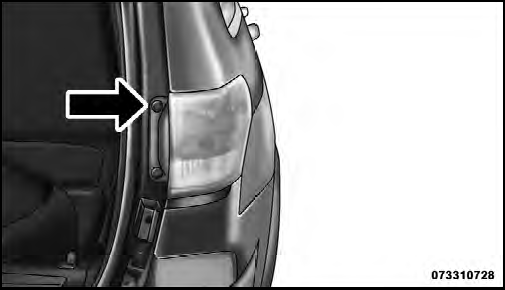

2. Remove the two push-pins from the tail lamp housing.

3. Grasp the tail lamp and pull firmly rearward to

3. Grasp the tail lamp and pull firmly rearward to disengage the lamp from the aperture panel.

4. Twist socket counter clockwise and remove from lamp.

5. Pull the bulb to remove it from the socket.

6. Replace the bulb, reinstall the socket, and reattach the lamp assembly.
