Turn Signals

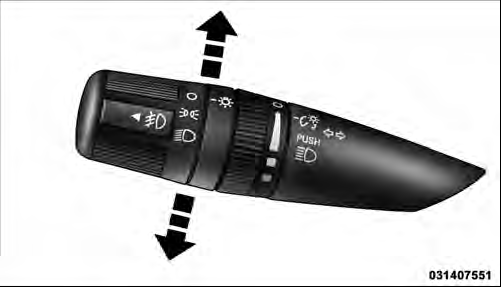

Move the multifunction lever up or down and the arrows on each side of the instrument cluster flash to show proper operation of the front and rear turn signal lights.

Turn Signal Operation
NOTE:
• If either light remains on and does not flash, or there is a very fast flash rate,
check for a defective outside light bulb. If an indicator fails to light when the
lever is moved, it would suggest that the indicator bulb is defective.
• A tone will chime if the turn signals are left on for more than 1 mile (2 km).
