Soft Top — Four-Door Models

Please visit the owner’s section of for instructional videos.

The soft top is not designed to carry any additional loads such as roof racks, spare tires, building, hunting, or camping supplies, and/or luggage, etc. Also, it was not designed as a structural member of the vehicle, and thus cannot properly carry any additional loads other than environmental (rain, snow, etc.).

If the temperature is below 72°F (24°C) and/or the top has been folded down for a period of time, the top will appear to have shrunk when you raise it, making it difficult to put up. This is caused by a natural contraction of the vinyl coating on the fabric top.

Place the vehicle in a warm area. Pull steadily on the top fabric. The vinyl will stretch back to its original size and the top can then be snapped into place. If the temperature is 41°F (5°C) or below, do not attempt to put the top down or roll the rear or side curtains.

• Do not run a fabric top through an automatic car wash. Window scratches and wax buildup may result.

• Do not lower the top when the temperature is below 41°F (5°C). Damage to the top may result.

• Do not lower the top when the windows are dirty.

Grit may scratch the window.

• Do not move your vehicle until the top has been either fully attached to the windshield frame, or fully lowered.

• Do not lower the top with the windows installed.

Window and top damage may occur.

• Refer to “Appearance Care for Fabric Top Models” in “Maintaining Your Vehicle” for further information.

It contains important information on cleaning and caring for your vehicle’s fabric top.

• Do not use any tools (screwdrivers, etc.) to pry or force any of the clamps, clips, or retainers securing the soft top. Do not force or pry the soft top framework when opening or closing. Damage to the top may result.

• Do not drive the vehicle with the rear window curtain up unless the side curtains are also open.

Dangerous exhaust gases which can kill could enter the vehicle.

• The fabric upper doors and fabric top are designed only for protection against the elements. Do not rely on them to contain occupants within the vehicle or to protect against injury during an accident. Remember, always wear seat belts.

Failure to follow these cautions may cause interior water damage, stains or mildew on the top material:

• It is recommended that the top be free of water prior to opening it. Operating the top, opening a door or lowering a window while the top is wet may allow water to drip into the vehicle’s interior.

• Careless handling and storage of the soft top may damage the seals, causing water to leak into the vehicle’s interior.

• The soft top must be positioned properly to ensure sealing. Improper installation can cause water to leak into the vehicle’s interior.

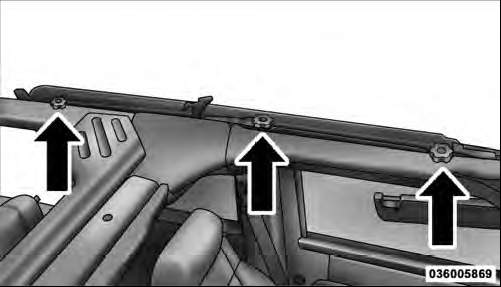

NOTE: Do not remove any of the three attachment knobs unless you are planning on installing the hard top.

Quick Steps For Lowering The Soft Top
