Fluid Level Check

The fluid level should be to the bottom edge of the fill hole (1) when the vehicle is in a level position.

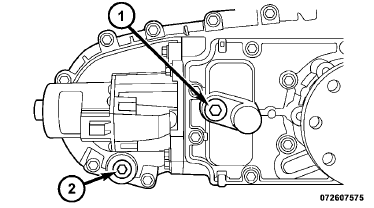

1 — Fill Plug
1 — Fill Plug
2 — Drain Plug
