Removing The Rear Seat — Two-Door Models

WARNING!
• It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed.

• Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts.

• Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• In a collision, you or others in your vehicle could be injured if seats are not properly latched to their floor attachments. Always be sure that the seats are fully latched.

1. Fold the rear seat forward following steps 1 and 2 under “Fold And Tumble Rear Seat” in this section.

2. Press down on the release bar on each side, and pull the seat out and away from the lower bracket.

3. Remove the seat from the vehicle.

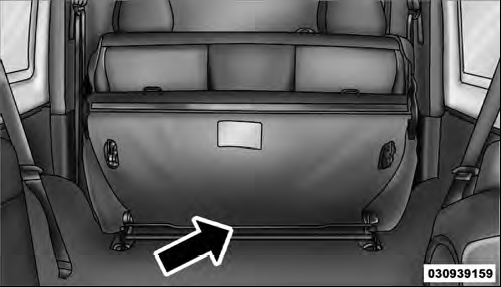

Release Bar Location
Release Bar Location
