Door Frame Removal

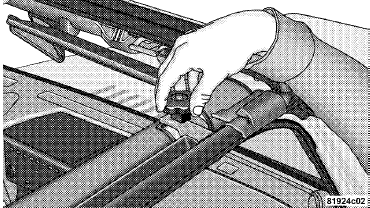

1. Unscrew and remove the door frame attachment knobs (two per door).

WARNING!

WARNING!
Use both hands to remove the door frames. The door frames will fold and could cause injury if both hands are not used.

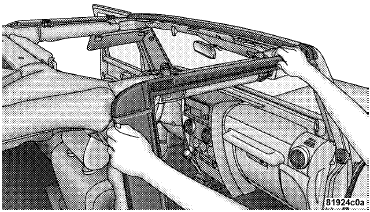

2. Place one hand on the upper rear and one hand on the front of the door frame.

3. Pull the frame toward you with your rearward hand to remove the frame from the vehicle.

4. Screw the knobs back into the door frame and fold for storage. Store in a

4. Screw the knobs back into the door frame and fold for storage. Store in a secure location.

WARNING!

WARNING!
Never store the door frames in your vehicle. In an event of an accident, a loose door frame many cause personal injury. If removed, always store the door frames outside of the vehicle.
