Quick Steps To Lowering The Soft Top

Refer to “Lowering The Soft Top” in this section for further information.

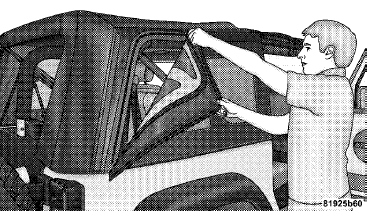

1. Remove the side and back windows.

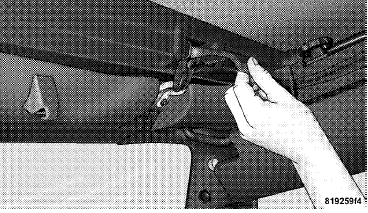

2. Release header latches from the windshield frame.

2. Release header latches from the windshield frame.

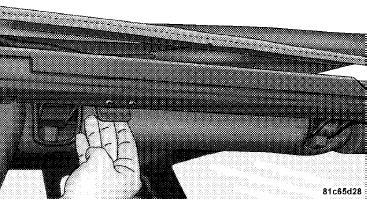

3. Release the Sunrider latch (both sides).

3. Release the Sunrider latch (both sides).

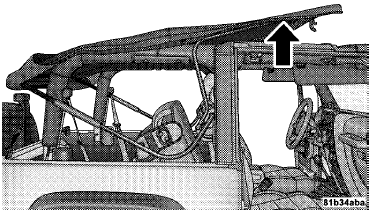

4. Open the swing gate and lower the top.

4. Open the swing gate and lower the top.

NOTE: Ensure fabric does not overhang the sides of the vehicle.
