Quick Steps To Raising The Soft Top

Refer to “Raising The Soft Top” in this section for further information.

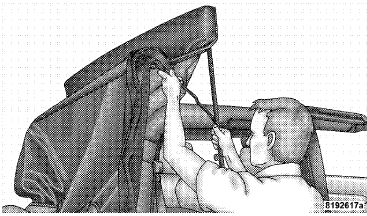

1. Open the swing gate and raise the top, engaging the Sunrider latches (another person may be needed to help with this operation).

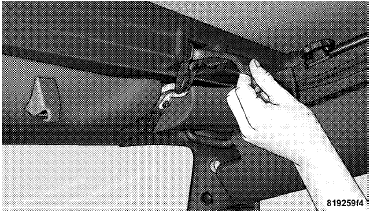

2. Engage header latches.

2. Engage header latches.

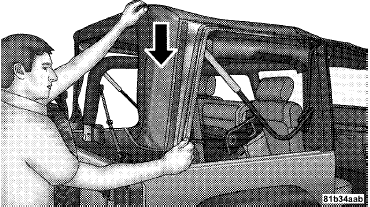

3. Install rear corner panels.

3. Install rear corner panels.

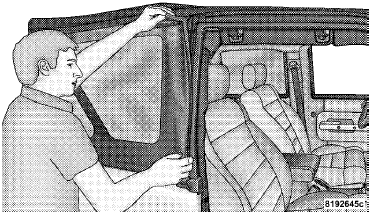

4. Install side and back windows.

4. Install side and back windows.
