Quick Steps For Lowering The Soft Top

Jeep Wrangler / Jeep Wrangler Owner's Manual / Understanding The Features Of Your Vehicle / Soft Top — Four-Door Models / Quick Steps For Lowering The Soft Top

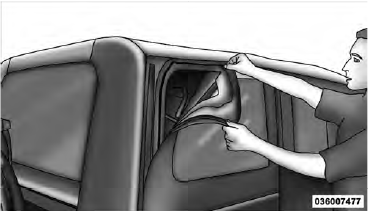

1. Remove the side and back windows.

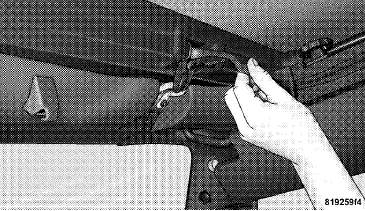

2. Release header latches from the windshield frame.

2. Release header latches from the windshield frame.

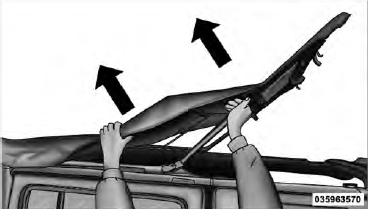

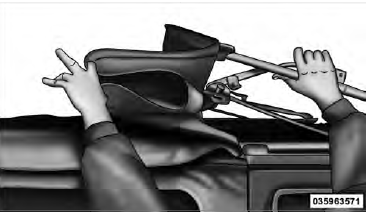

3. Fold header rearward, pulling the fabric to the rear.

3. Fold header rearward, pulling the fabric to the rear.

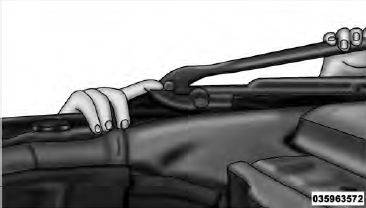

4. Release Sunrider latch (both sides).

4. Release Sunrider latch (both sides).

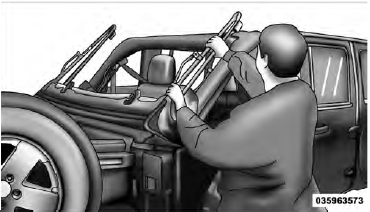

5. Open the swing gate and lower the top.

5. Open the swing gate and lower the top.

NOTE: Ensure the fabric does not overhang the sides of the vehicle.

NOTE: Ensure the fabric does not overhang the sides of the vehicle.
