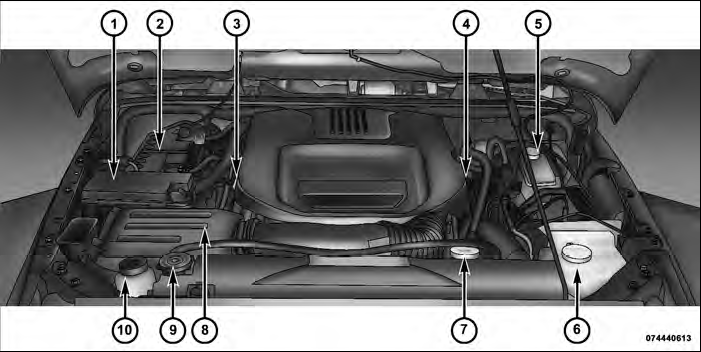

Engine Compartment — 3.6L

1 — Integrated Power Module (Fuses)

1 — Integrated Power Module (Fuses)
2 — Battery
3 — Engine Oil Dipstick
4 — Engine Oil Fill
5 — Brake Fluid Reservoir
6 — Washer Fluid Reservoir
7 — Engine Coolant Reservoir
8 — Air Cleaner Filter
9 — Coolant Pressure Cap
10 — Power Steering Fluid Reservoir
