Tire And Loading Information Placard Location

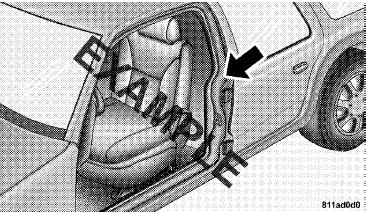

NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door.

Tire Placard Location
Tire Placard Location
