Play Video Games

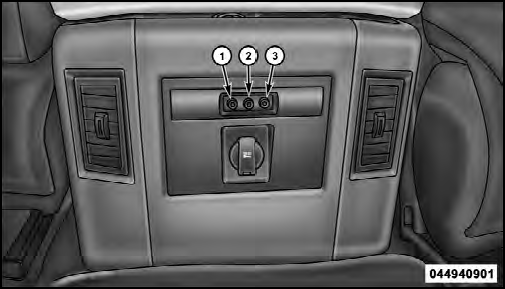

Connect the video game console to the Auxiliary RCA input jacks located on the back of the center console.
1. Video In – Yellow
2. Left Audio In – White
3. Right Audio In – Red
When connecting an external source to the AUX input, be sure to follow the standard color coding for the VES™ jacks:
NOTE: Certain high-end video games, such as Playstation3 and XBox360 will exceed the power limit of the vehicle’s Power Inverter. Refer to the Power Inverter section in your vehicle’s Owner’s Manual for more information.
Ensure the Remote Control and Headphone switch is on Channel 1.
