Front Panel(s) Removal

NOTE: Left panel must be removed before removing right panel.

1. Fold down the sun visor, and move it to the side.

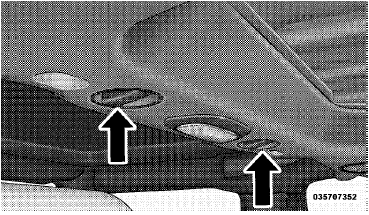

2. Turn the rear fasteners (knobs) (located on the overhead speaker bar assembly) counterclockwise until they can be removed.

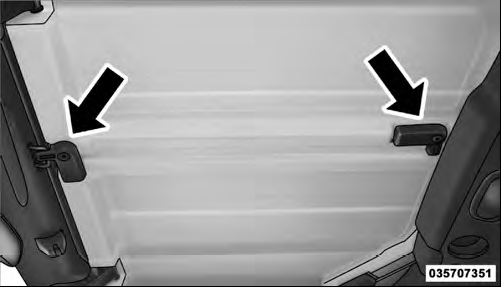

3. Turn the center L-shaped locks (two) from the center of the roof panel.

3. Turn the center L-shaped locks (two) from the center of the roof panel.

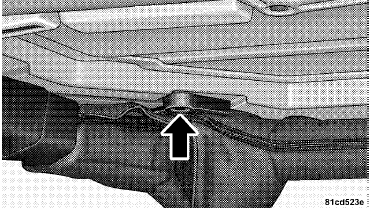

4. Turn the rear L-shaped lock (located above the shoulder belt anchorage).

4. Turn the rear L-shaped lock (located above the shoulder belt anchorage).

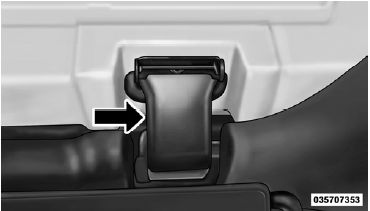

5. Unlatch the header panel latch located at the top of the windshield.

5. Unlatch the header panel latch located at the top of the windshield.

6. Remove the left-hand panel.

6. Remove the left-hand panel.

To remove the right panel, follow the steps above except for Step 3.
