Fuel Filler Cap (Gas Cap)

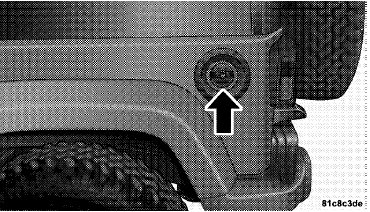

The gas cap is located on the driver’s side of the vehicle.

If the gas cap is lost or damaged, be sure the replacement cap is the correct one for this vehicle.

Fuel Filler Cap
Fuel Filler Cap

CAUTION!
• Damage to the fuel system or emission control system could result from using an improper fuel cap (gas cap). A poorly fitting cap could let impurities into the fuel system. Also, a poorly fitting aftermarket cap can cause the “Malfunction Indicator Light (MIL)” to illuminate, due to fuel vapors escaping from the system.

• To avoid fuel spillage and overfilling, do not “top off” the fuel tank after filling.

WARNING!
• Never have any smoking materials lit in or near the vehicle when the gas cap is removed or the tank is being filled.

• Never add fuel when the engine is running. This is in violation of most state and federal fire regulations and may cause the MIL to turn on.

• A fire may result if gasoline is pumped into a portable container that is inside of a vehicle. You could be burned. Always place gas containers on the ground while filling.

NOTE:
• When the fuel nozzle “clicks” or shuts off, the fuel tank is full.

• Tighten the gas cap about 1/4 turn until you hear one click. This is an indication that the cap is properly tightened.

• If the gas cap is not tightened properly, the MIL will come on. Be sure the gas cap is tightened every time the vehicle is refueled.
